Magento 2 HTML Sitemap - Sitemap User Guide

Add a searchable, hierarchical HTML sitemap to your Magento 2 store covering categories, products, CMS pages, and custom links - all in one place.

Overview

Sitemap adds an interactive HTML sitemap page to your Magento 2 storefront. It builds a hierarchical view of your store's category tree, products, CMS pages, and any custom links you choose to include. A real-time search bar lets shoppers filter the sitemap as they type, and a responsive multi-column layout keeps the page usable on mobile.

Sitemap configuration overview

This module helps you:

  • Give shoppers a single page where they can browse or search your entire store structure
  • Surface CMS pages that would otherwise be hard to discover through normal navigation
  • Add hand-curated internal or external links alongside your category tree
  • Put a footer link to the sitemap on every page of your store
  • Keep empty categories out of the sitemap so shoppers see only useful content

When to use this

Use Sitemap when you want to:

  • Provide a fallback navigation aid for shoppers who can't find what they're looking for through menus
  • Improve crawlability by giving search engines a single page that links to all major sections
  • Showcase seasonal or promotional CMS landing pages alongside your category structure
  • Include partner or reference links in an organised section of your store
  • Reduce support queries from customers who ask "where do I find X?"

Key capabilities

  • Category tree display - Renders your full category hierarchy as nested H2 headers and subcategory links, with optional product counts
  • Product listings - Optionally shows products within each category so shoppers can jump straight to a product
  • CMS page integration - Picks specific CMS pages from a multi-select list and includes them in the sitemap
  • Custom links - Accepts a plain-text list of URLs and anchor labels, with optional <em> styling and <h2> section headings
  • Real-time search - Filters category and product links as the shopper types, hiding non-matching items without a page reload
  • Footer link - Optionally injects a "Sitemap" link into your store's footer on every page
  • Empty-category suppression - Hides categories that have no products, keeping the sitemap clean

Installation

Sitemap installs via Composer, then activates with a license key from your Moogento.com account. The whole flow takes about 5 minutes.

Step 1: Get your Composer keys from Moogento.com

  1. Sign in at https://www.moogento.com and open My Plugins in your account menu.
  2. Find Sitemap in the list of plugins you own.
  3. Generate (or reveal) the Composer access keys for that plugin - a public key and a private key.
  4. Add your install domain to the key. Each Composer key is tied to a specific domain - if you're installing on yourstore.com, add yourstore.com to the key's allowed domains. The Composer download will be rejected on any other domain.

If you run staging and production on different domains, add both - separate keys per environment are fine too.

Step 2: Install the module with Composer

From your Magento 2 root directory:

composer require moogento/module-sitemap

When Composer asks for credentials, paste the public key as the username and the private key as the password. They'll be cached in ~/.composer/auth.json for future runs.

Step 3: Enable the module in Magento

php bin/magento setup:upgrade
php bin/magento setup:di:compile
php bin/magento cache:clean

If you run php bin/magento module:status Moogento_Sitemap you should see it listed as enabled.

Step 4: Add your license key in the Moogento admin

  1. Still on https://www.moogento.com > My Plugins, copy the license key for Sitemap (separate from the Composer keys you used above).
  2. In your Magento admin, go to Stores > Configuration > Moogento > Licenses.
  3. Find the row for Sitemap and paste the license key.
  4. Click Save Config, then run php bin/magento cache:clean once.

The license validates within a few seconds. You should see the module's status flip to active. If it stays inactive, double-check the domain on the license matches where you've installed - domain mismatch is the most common cause.

Setup overview

Most setup happens in:

Stores > Configuration > Moogento > Sitemap

You'll mainly work with:

  • General - master enable/disable switch, footer link, category and product display, CMS pages, and custom links

All settings are available at the default, website, and store-view scopes.

Common setups

You've just installed Sitemap and want shoppers to be able to find it from every page.

How to set it up

  1. Go to: Stores > Configuration > Moogento > Sitemap > General

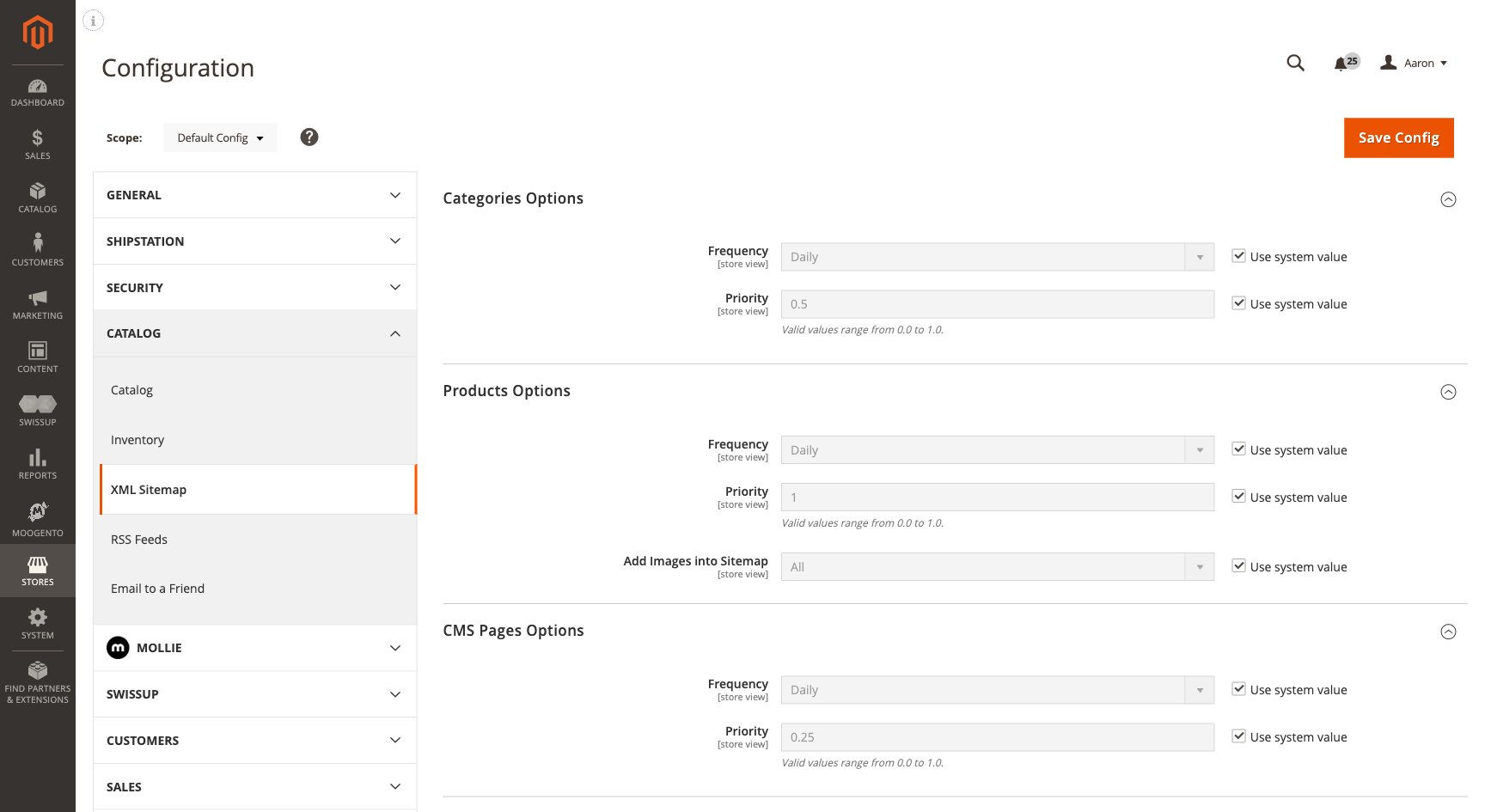

    General config group

  2. Set:

    • Enable: Sitemap = Yes
    • Add: Sitemap link to footer = Yes
    • Include: Categories & products = Yes

  3. Click Save Config, then run:

    php bin/magento cache:clean

  4. Visit your storefront. A "Sitemap" link should appear in the footer, and navigating to /sitemap/index/index should show the category tree.

Notes

  • The footer link respects the Add: Sitemap link to footer config value (moositemap/sitemap/footer). If the link does not appear, verify the field is set to Yes at the correct store scope and that your theme's footer block is not overriding the layout.
  • On Hyvä storefronts the footer link is rendered by the Hyva_MoogentoSitemap compatibility module; no extra action is required as long as that module is enabled.

Add selected CMS pages to the sitemap

You have landing pages - a returns policy page, a brand story page - that you want shoppers to discover from the sitemap.

How to set it up

  1. Go to: Stores > Configuration > Moogento > Sitemap > General

  2. Set:

    • Include: Specific CMS pages = Yes

  3. The Filter: CMS pages multi-select becomes visible. Select each page you want to include. Only active pages are listed; 404 and cookie pages are excluded automatically.

  4. Click Save Config, then run:

    php bin/magento cache:clean

Notes

  • The list shows pages valid for the current store scope. If a page is missing, confirm it is active and assigned to the current store view.
  • Technical paths: moositemap/sitemap/include_cms_yn and moositemap/sitemap/include_cms_listing.

You want to include links to your social media profiles, a partner site, or a promotional microsite - with a clear "More resources" heading separating them from your categories.

How to set it up

  1. Go to: Stores > Configuration > Moogento > Sitemap > General

  2. Set:

    • Include: Additional links = Yes

  3. In the Links textarea that appears, enter one link per line using the format {url},{anchor text}. Supported extras:

    • Wrap anchor text in <em>…</em> to apply emphasis styling.
    • Use a bare <h2>…</h2> line (no URL, no comma) to insert a section heading that starts a new block.

    Example:

    <h2>More resources</h2>
https://www.instagram.com/yourstore/,Follow us on Instagram
https://www.yourpartner.com/,Partner Site <em>Exclusive deals</em>

  4. Click Save Config, then run:

    php bin/magento cache:clean

Notes

  • Only the following HTML tags are permitted in anchor text: <em>, <b>, <span>, <br>, <h2>, <strong>, <ul>. Any other tags are stripped.
  • Technical path: moositemap/sitemap/include_links_listing.

Features reference

Hide empty categories

Keeps the sitemap focused by omitting categories that contain no products. Useful for stores with seasonal or draft categories that you haven't populated yet.

  • What it does: Checks each category's product count before rendering. Categories with zero visible products are skipped.
  • When to use it: When your category tree includes placeholder categories that shoppers would find confusing or misleading.
  • Config path: Stores > Configuration > Moogento > Sitemap > General > Hide: Empty categories (moositemap/sitemap/hide_empty_categories_yn)

Show products within categories

Renders individual product links indented beneath each category in the sitemap, letting shoppers jump directly to a product page.

  • What it does: Queries each category's product collection (active, visible, store-scoped) and outputs links beneath the category heading. Product count is shown in parentheses next to the category name when more than one product is present.
  • When to use it: For smaller catalogs where surfacing products in the sitemap adds navigation value. For large catalogs this can make the page unwieldy - consider leaving it disabled and relying on the category links alone.
  • Config path: Stores > Configuration > Moogento > Sitemap > General > Show: products (moositemap/sitemap/show_products)

A search bar at the top of the sitemap page filters visible links as the shopper types, hiding non-matching category and product names without a page reload.

  • What it does: Compares each category or product link label (case-insensitively) against the typed query and toggles a CSS class to hide non-matches. The product count badge is also hidden for filtered-out items.
  • When to use it: Always active when the module is enabled - no separate configuration is required.
  • Frontend URL: /sitemap/index/index

Advanced configuration

Scope of hide-empty-categories and show-products

The Hide: Empty categories and Show: products fields are showInDefault="1" only - they are not available at website or store-view scope. Set them at the default configuration level and they apply globally. If you need per-store behaviour, consider using store-specific category visibility settings in the Magento catalog instead.

Notes

  • Changing these values requires a cache flush: php bin/magento cache:clean layout block_html full_page.

Performance on large catalogs

If your store has thousands of categories or products and the sitemap page is slow to load:

  1. Enable Hide: Empty categories to reduce the number of nodes rendered.
  2. Set Show: products = No - product queries run per-category and are the primary contributor to load time on large catalogs.
  3. Enable Magento's full-page cache (FPC). The sitemap block is marked cacheable="false" because it is personalisation-free, but the page itself can be cached by Varnish or the built-in FPC.
  4. If memory exhaustion occurs, increase memory_limit in your PHP configuration and reindex: php bin/magento indexer:reindex catalog_category_flat catalog_product_flat.

Tips & best practices

  • Run php bin/magento cache:clean after every config change - the sitemap page renders PHP blocks that pick up config values at page load time.
  • Set Hide: Empty categories = Yes on production stores so shoppers never land on a category with no products via the sitemap.
  • Use <h2> section headings in the custom links field to visually group external links and prevent a long flat list.
  • Keep the custom links list short - the sitemap search only filters category and product links, not custom links, so very long custom link sections are harder for shoppers to scan.
  • On Hyvä storefronts, no additional compatibility steps are required beyond having the Hyva_MoogentoSitemap module enabled. It replaces the Luma stylesheet automatically and uses Tailwind-scoped CSS.
  • Verify the sitemap renders at the correct store scope before going live - config values are scope-sensitive and a "Yes" at default level can be overridden to "No" at store-view level.

Troubleshooting

Sitemap page shows no content

The sitemap URL (/sitemap/index/index) loads but the page is blank or has no links.

  • Cause: The module is disabled or Include: Categories & products is set to No with no CMS pages or custom links enabled either.
  • Check: In the admin go to Stores > Configuration > Moogento > Sitemap > General and confirm Enable: Sitemap = Yes and at least one content type (categories, CMS pages, or custom links) is enabled.
  • Resolution: Enable the module and at least one content source, save config, then run php bin/magento cache:clean.

A category does not appear in the sitemap

One or more categories are missing from the sitemap even though they exist in the catalog.

  • Cause: The category is inactive, not assigned to the current store, or is empty and Hide: Empty categories is set to Yes.
  • Check: In the Magento catalog, confirm the category's Enable Category flag is Yes and it is included in the store's root category. Check that the category has at least one active, visible product if Hide: Empty categories is enabled.
  • Resolution: Activate the category, assign it to the correct store view, or add at least one product. Clear cache after any change.

The "Sitemap" link is not visible in the storefront footer despite Add: Sitemap link to footer being set to Yes.

  • Cause: Layout cache is stale, or the theme's footer block is overriding the layout XML that inserts the link.
  • Check: Run php bin/magento cache:clean layout block_html full_page and reload the storefront. If still missing, inspect the page source for the moo_sitemap_footer_link block - if absent, the theme may be replacing the footer_links block entirely.
  • Resolution: Flush the layout cache. If the theme overrides footer_links, add the sitemap link directly to the theme's footer template or use a layout override that references the correct parent block.

Search bar does not filter results

Typing in the sitemap search input has no effect - links remain visible regardless of what is typed.

  • Cause: A JavaScript conflict is preventing the filterable-list RequireJS component from initialising, or jQuery is not loaded.
  • Check: Open the browser console and look for JavaScript errors. Confirm that Moogento_Sitemap::js/filterable-list.js is included in the page source.
  • Resolution: Resolve any JS conflicts reported in the console. If running on a custom theme that does not load jQuery, add jQuery as a dependency. On Hyvä, the compat module handles the Alpine.js-based equivalent - ensure Hyva_MoogentoSitemap is enabled.

FAQs

Go to Stores > Configuration > Moogento > Sitemap > General and set Add: Sitemap link to footer to Yes, then save and flush your cache. The link appears automatically in the footer on Luma, Porto, and Hyvä storefronts.

How do I include CMS pages in the sitemap?

Set Include: Specific CMS pages to Yes, then select the pages you want from the Filter: CMS pages multi-select that appears. Only active pages are listed, and pages like the 404 or cookie policy are excluded automatically.

Why are some categories missing from my sitemap?

The most common reason is that Hide: Empty categories is set to Yes and those categories have no active, visible products. Check your category status in the Magento catalog and either add products or set Hide: Empty categories to No if you want all categories displayed.

Enable Include: Additional links, then enter one link per line in the Links field using the format https://example.com/,Link label. Add a bare <h2>Section heading</h2> line above a group of links to create a labelled section. See Common setups - Add custom links for the full format.

What happens if I disable Sitemap?

Disabling the module (setting Enable: Sitemap to No) makes the sitemap page return a 404 and hides the footer link. No store data is deleted. Re-enabling it restores the page immediately after a cache flush.

Is Sitemap compatible with Hyvä, Luma, and Porto?

Yes. Luma and Porto use the standard layout and Luma stylesheet. Hyvä requires the companion Hyva_MoogentoSitemap compatibility module, which replaces the Luma CSS with Tailwind-scoped styles and provides an Alpine.js-aware footer link block.

Does the sitemap search slow down the page?

No. The search is entirely client-side JavaScript - it filters already-rendered links without making any server requests. The only performance consideration is the initial page load, which depends on the number of categories and products rendered. For large catalogs, disable Show: products to keep load times short.

How much does Sitemap cost and which plan do I need?

Sitemap is a standalone plugin purchased through https://www.moogento.com. Visit the pricing page on the site for current pricing - no subscription tier is required; it is a one-time purchase per domain.

Can I add styled text to custom link labels?

Yes. Wrap anchor text in <em>…</em> for italics or <b>…</b> for bold. Tags outside the allowed set (<em>, <b>, <span>, <br>, <h2>, <strong>, <ul>) are stripped automatically before rendering.

Where is the sitemap page URL?

The sitemap page is always at /sitemap/index/index relative to your store base URL. You can link to it from any CMS block, page, or menu using that path.

Need help?

  • moo@moogento.com
  • Include:
    • Magento version
    • Module name
    • What you're trying to do
